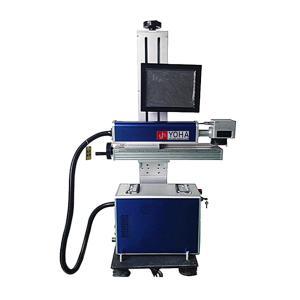

Online laser marking machine

Online flight laser marking is ideal for high-speed batch processing in production lines. By integrating automated solutions such as in-motion marking systems, rotary fixtures, and multi-station setups, this method ensures fast, efficient operation while reducing labor costs.

Contact Now

Product Details

Online flying laser marking machine specifications:

model	YH-10F	YH-20F	YH-30F	YH-50F
laser power （W）	≥10	≥20	≥30	≥50W
Galvo marking speed	≥7m/s	≥7m/s	≥7m/s	max9m/s
Marking area	110mm	110mm	110mm	175mm
marked focus	180mm	180mm	180mm
Tag content	Vector, barcode, various fonts, photos, and other formats
Tagged Mode	static and dynamic
Online speed	≤120m/min			Depends on what the mark contains
operation temperature	5-35°C
Working humidity	Relative humidity less than 95%, non condensing
Structural materials	High quality aluminum alloy, stainless steel
edit	Computer software to be edited
communication interface	SB, RS232 interface
power supply	AV220V~100V /50Hz~60HZ
rated power	500W	800W	1000W
Options	Sensors, online detection speed encoders, rotation markers, Equipment cabinet, Laser generator support			Foot switch

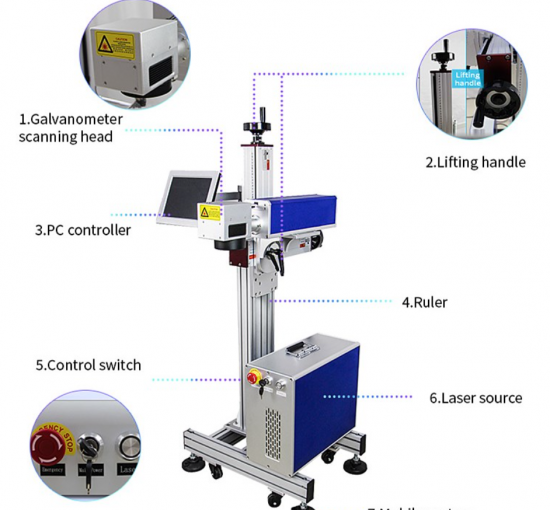

flying marking type_.jpg
