Automatic Solar Module EL and AOI Appearance Tester

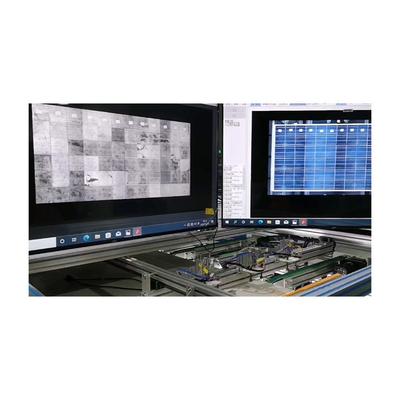

The EL system uses 4 infrared cameras, and the AOI system uses 8 visible light cameras to detect defects on solar panels. These systems can work alone or together, depending on the needs.

Item NO.:

YHEL-12

Product Orgin:

China

Color:

White&Black&Yellow&Blue

Product Details

Automatic Solar Module EL and AOI Appearance Tester

Technical specifications:

Applications:

The EL detection system consists of 4 near-infrared cameras (high quality 0.4mm/pixel), while the appearance AOI detection system comprises another 8 visible light cameras (high quality 0.09mm/pixel). These cameras respectively capture EL infrared images and visible light images, ensuring comprehensive detection across both imaging spectra.

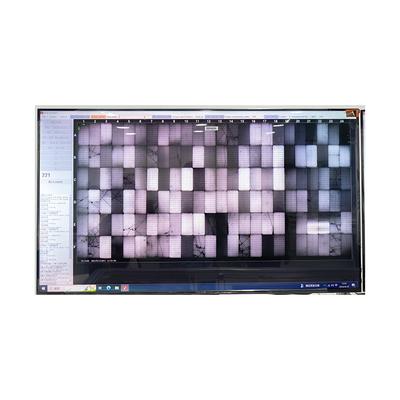

By utilizing multi-station image acquisition and multi-camera image stitching, the system generates complete EL and visible images of the solar panel. This method guarantees high imaging quality and a small window feature for viewing detailed sections, which is essential for accurately identifying both EL defects and appearance defects on solar panels.

The EL detection and AOI appearance detection of PV panels can function either as independent detection systems or be integrated into a single combined detection system, offering flexibility depending on the inspection needs.

Specifications:

Specification	Details
Test Items	Various types of solar panels
Maximum Field of Vision	2600mm x 1500mm
EL Defect Types	Hidden crack, broken grid, black center, black spot, dark film, debris, etc.
AOI Appearance Defects	Foreign matter, damage, exposed white, color difference, etc.
Detection Efficiency	Detection time of a single panel: approximately 20.0 seconds
Network Communication	Communication between network port and PLC can be integrated with the production line.
Program Controlled EL Power Supply	Power parameters can be adjusted through the program.
Flexible Formula Type	Compatible with various product models.
Database Function	Test results can be saved and queried.
Software Interface	Features small window for detailed view; user-friendly and easy to operate.
EL Detection System	Consists of four near-infrared industrial cameras, four high-definition lenses, filters, and detection software.
Appearance Inspection System	Includes four visible light cameras, four high-definition lenses, light sources, filters, and inspection software.

Features:

Feature	Description
Special Light Source and Image Acquisition System	Provides stable and high-quality images.
Sony CCD Chips	Equipped with high-quality Sony CCD chips for superior image clarity.
Image Mosaic	Accurate image mosaic without obvious dislocation.
High Detection Efficiency	Ensures high detection efficiency and is easy to integrate with the production line.
Intelligent Image Processing Algorithm	Utilizes an intelligent image processing algorithm for stable and reliable detection results.
Compatibility with Various Products	Compatible with a variety of products and models, effectively reducing enterprise costs.
