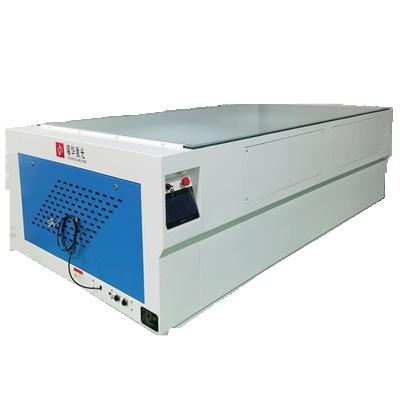

AAA Solar Simulator

Application:

Mainly used in automatic test and result record of solar mono-crystalline silicon, poly-crystalline silicon solar cell module and thin-film module.

Products Features:

1. Flash impulse continuous adjustable range 0-60ms 100ms(Customized)

2. Four-line measurement; 14-bit 4-channel high-speed synchronous acquisition card, 8000 data collecting point;

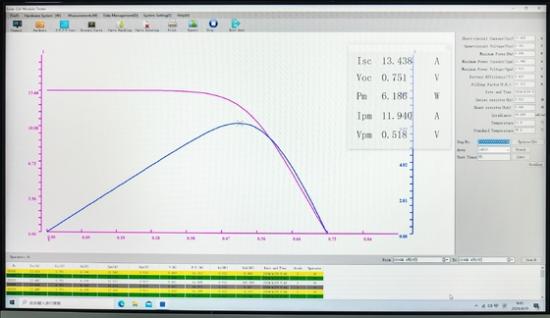

3. 10 parameters display;measured parameter display in tabulation and graphic way;

4. Irradiance automatically compensating; temperature automatically compensating;

5. Voice counts off and prompts of flash time;counting prompts of flash time

6. 24 consecutive hours of work, working life of imports Xenon lamp is 300,000 times of flash

7. Patented Design with high quality key components

8. Touch-screen control

9. Independent explosion proof control cabinet

Technical Data:

Model	YHPT-AAA	Feature
Lamp Spectrum	In line with IEC60904-9:2007(A Grade)	1. Measurable parameters: I-V curve, short circuit current, open circuit voltage, peak power, peak power point voltage, current, fixed voltage current, filling factor, conversion efficiency, light intensity and environmental temperature. 2. Automatic classification and display function. It can be automatically classified according to the fixed voltage and current, and the results of the classification can be displayed directly on the test cabinet by digital display. Easy to use in production line. 3. Solar cells are connected by four wires to ensure the current accuracy. 4. Measuring temperature and light intensity at the same time to ensure the accuracy of automatic correction of solar cell temperature and light intensity. 5. Self-tuning system with manual input compensation parameters, automatic/manual temperature compensation, automatic light intensity compensation, etc.
Light Intensity	1000W/m²(700W/m²-1200W/m²)
Light intensity non-uniformity	≤±2%[AAA]
Instability degree of irradiation	≤±1%[AAA]
Test results consistency	≤±0.05%[AAA]
Test error of electrical properties	≤1% AAA
Single flash time	60ms 100ms 150ms(Optional)
Effective Test Range	2500mm×1400mm *26001500mm(Optional)**
Measuring Voltage	0-200V(Resolution 1mV)
Measuring current	200mA-20A(Resolution 1mA)
Environmental temperature	15℃~30℃
Test Parameters	Isc, Voc,Pmax, Vm,Im,FF,EFF,Temp,Rs,Rsh
power	220V/50Hz(60Hz)

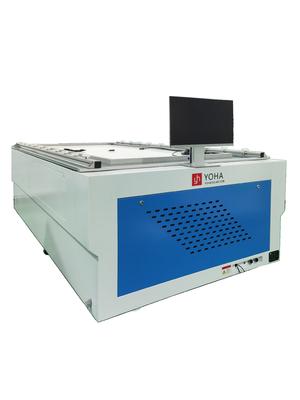

Equipment, machine configuration:

1. Test Host(With electronic load):1 set

2. Light source(With optical system):2 Pieces

3. PC:1 set

4. High-speed data collection A/D plant:1 piece

5. Dedicated measurement software:1 set

6. Test bench:1 set

7. Standard Battery(Compensation and correction for the irradiance uniformity measurements):1 piece

8. Size:2.64*1.48*1.2m (Host)+0.86*0.61*0.95m(Spare parts)

9. G.weight:400KGS+25KGS

Key Components:

SN	Name	Brand	Qty
1	Test Host(With electronic load)	Customized	1
2	High-speed data collection A/D Card	Customized	1
3	PLC	Siemens PLC	1
4	Touch-screen control	TK6070IH	1
6	Light source	Germany Haimam	2
7	Computer	Industrial computer	1
