Automatic Solar Module EL and AOI Appearance Tester

8 Cameras Automatic Solar Module EL and AOI Appearance Tester
  • Item NO.:

    YH-EL8
  • Product Details

Applications:


The EL detection system consists of 4 near-infrared cameras(high quality 0.4mm/pixel), and the appearance AOI detection system consists of another 4 visible light cameras(high quality 0.09mm/pixel), which collect EL infrared images and visible light images respectively.

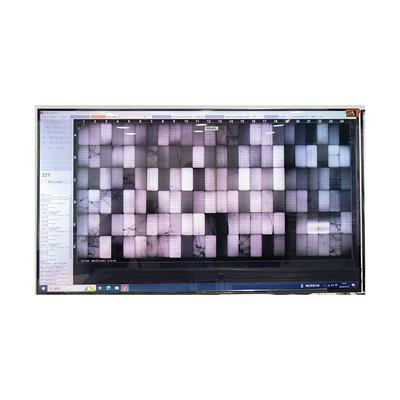

The complete EL image and visible image of the solar panel are obtained through multi-station image acquisition and multi-camera image splicing,. The system has high imaging quality and small window to view details, which is conducive to the determination of EL defects and appearance defects of solar panel.

The EL detection and AOI appearance detection of PV panel can be independent detection system or combined into a set of detection system.


Specification:


1. Test Items: various types of solar panel;

2. Maximum field of vision: 2000mmx1000mm;

3. EL defect types: Hidden crack, broken grid, black center, black spot, dark film, debris, etc;

4. Types of AOI appearance defects: foreign matter, damage, exposed white, color difference, etc;

5. Detection efficiency: detection time of single panel is about 20.0 seconds;

6. The communication between the network port and PLC can be integrated with the production line;

7. Program controlled  EL power supply, power parameters can be adjusted by the program;

8. The type formula is flexible and can be compatible with various product models;

9. With database function, test results can be saved and queried

10. With the function of small window to view details;

11. The software interface is friendly and easy to operate;

12. EL detection system consists of four near-infrared industrial cameras, four high-definition lenses, filters and detection software;

13. The appearance inspection system consists of four visible light cameras, four high-definition lenses, light sources, filters and inspection software.


Features:


1. Special light source and image acquisition system, stable and high quality image;

2. Sony CCD chips

3. The image mosaic is accurate without obvious dislocation;

4.  High detection efficiency, easy to integrate with production line;

5.  Intelligent image processing algorithm, stable and reliable detection results;

6. Compatible with a variety of products and models, effectively reduce enterprise costs;
